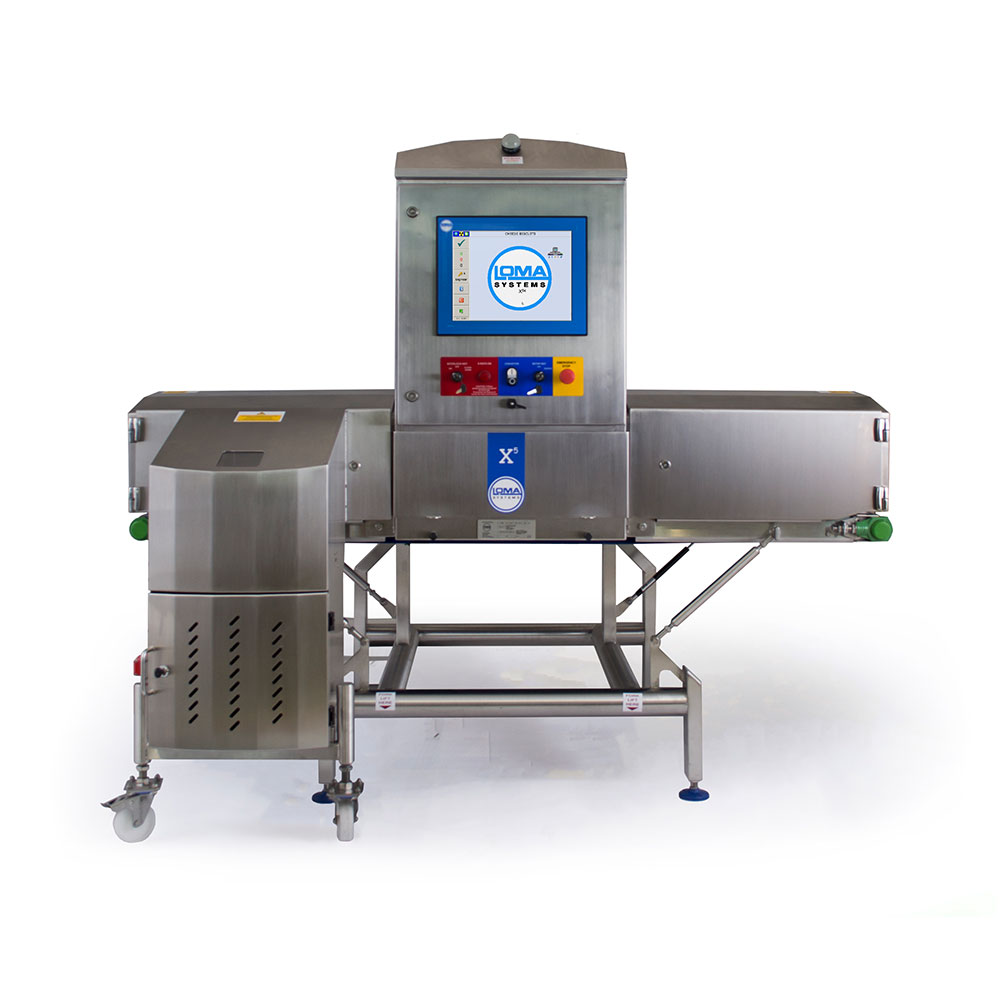

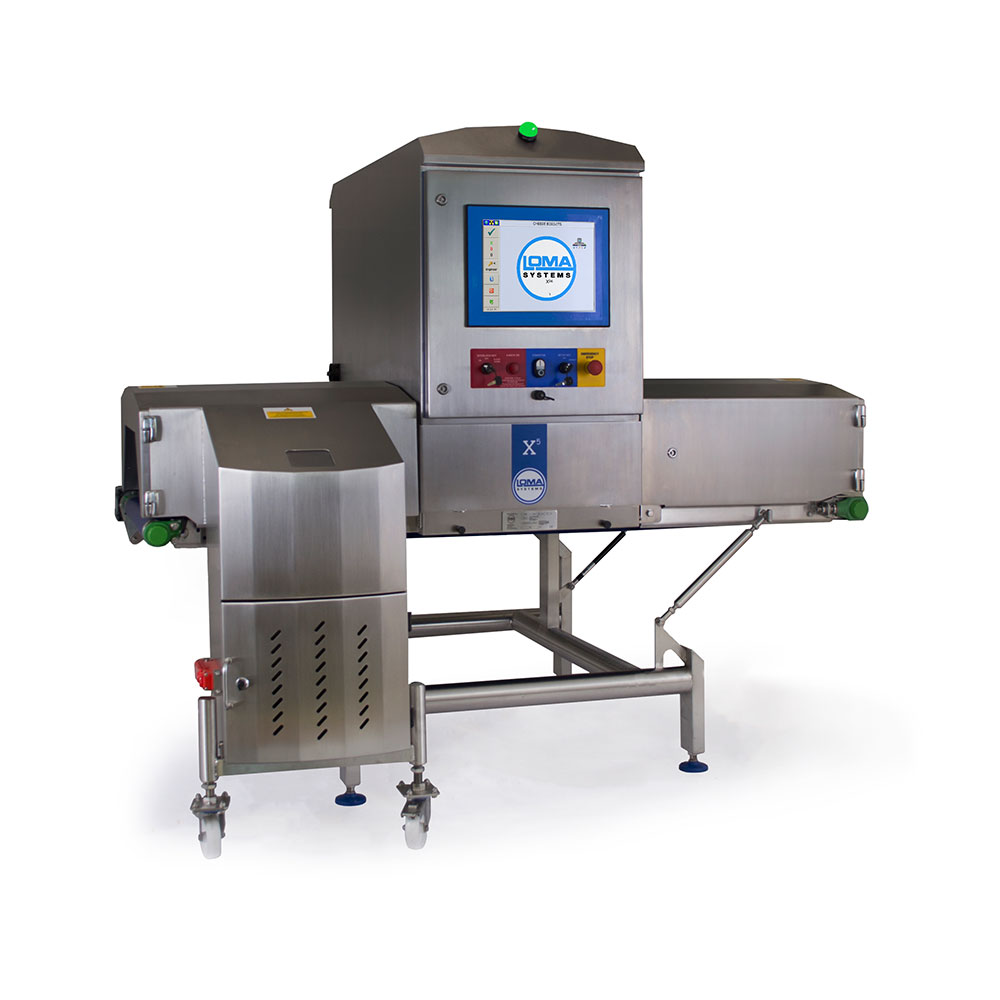

X5 Pack X-ray Inspection System

Designed to be integrated into line with built-in automatic reject and available in 300, 500 and 600 mm belt width models, the X5 Pack is perfect for a variety of unpackaged and packaged products.

A built-in technology changes significantly improve image quality and allow for much better detection on a wide range of contaminants including all metal, bone, glass, dense plastics, foil trays and even metalized film.

Offering good detection levels on a wide range of contaminants including all metal, bone, glass, dense plastics, foil trays or even metalized film.

The reliable heavy duty conveyor components, built for 24/7 operation with pass key protective set-up comes integrated with a PC with Ethernet and front access USB port.

Advanced digital detection
Loma X-ray ray digital detection inspection systems ensure 100% confidence in compliance without stopping the production line. The designs are simple to use and support high production line speeds. High-speed computer maximizes throughput and dynamic analysis maximizes performance and virtually eliminates false rejects. All controlled through a simple touch screen Windows 10 interface designed for ease of use.

Versatile detection with LOMA’s AAT technology

AAT technology allows the X-ray diode setting to be changed depending on the product you are inspecting, offering the very best detection levels across the board. Using a 0.4mm setting for very small metal contaminants and 0.8mm and 1.6mm to find softer contaminants such as bone, ceramic and glass.

Fully enclosed CCP solution with integrated reject station
All in one system with optional retail compliance options, the X5 Pack offers complete control and removes risks. Reject options include air blast and pusher.

Get inspecting fast with LOMA’s product learn wizard
A set-up wizard automatically optimizes the X5 Pack for each product type and allows you to learn or switch to new products within minutes.

Ideal for these products

Downloads for the X5 Pack X-ray Inspection System

X5 Pack Datasheet

X-ray inspection FAQ's

Understand more about X-ray inspection, how it compares to metal detection and what it can do for your production.

LEARN MORE

Additional Features



  • Check product integrity including counting and missing items
  • Manufactured with LOMA's "Designed to Survive" philosophy
  • Lead free construction

Specifications

Material of Construction: 304 Brushed stainless steel
System Length: 2000mm
Line Height Option: 700 - 1100mm (+/- 50 adjustment)
X-Ray Output: 210W (60kV 3.5 mA)
IP Rating: IP66
Belt Width: 300/500/600mm
Belt Type: PU Anti-static
Weight on Belt: Up to 50kg
Speed Range: 30 - 60 m/min
Supply Voltages: 85 to 265 V, single phase 50/60Hz, neutral & amp;Earth
Cooling: Vortex or AC Air Conditioning
Operating Environment (Standard): 2 to 10oC with cabinet warm up, 10 to 25oC with Vortex
Operating Environment (Optional): 25oC to 35oC AC Air conditioning (Cabinet reduced to NEMA 4x with AC Option)
X-Ray Safety: Leakage less than 1 μSv/h
Detection Algorithms: 15 Multilayers Algorithms combined in any combinations
Reporting: Event, Batch, Shift, PVS
Data Retrieval: Via USB, Ethernet, Tracs
