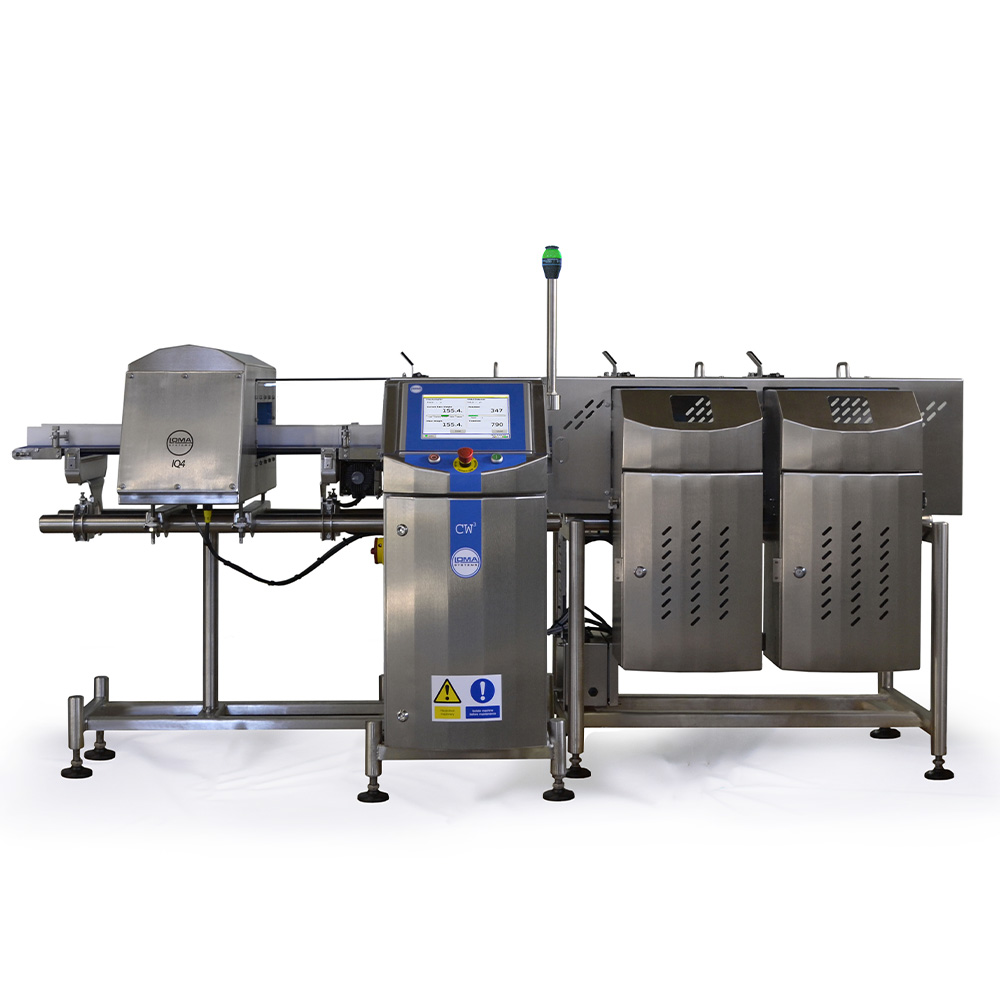

Metal Detector Checkweigher Combination System

LOMA's Metal Detector Checkweigher Combination system is designed for simultaneously inspect for metal contaminants, whilst weighing with the aim to reduce giveaway in food products. Operating from a single user interface, this system is perfect for inspecting a wide variety of food products, including retail-packed convenience food/ Food to Go and much more.

Consisting of both LOMA's IQ4 metal detection technology and the CW3 Checkweighing capabilities, a single touchscreen control uses icon driven menu’s for easy operation and integrated machine communication for safe product transfer.

Single User Interface provides Better Productivity
Operating from a single user interface, LOMA’s Combination systems set the industry standard for ease of set-up and operation, minimizing the need to train line staff on multiple interfaces.

Metal Detector and Checkweigher System From a Single Supplier
LOMA’s Combination systems provide a single central point of contact for spares, service and general enquiries, saving you valuable time whilst providing no compromise on build quality and standards.

Integrated System Saving Valuable Line Space

Using a combination system can save around 25% of valuable foot space within the production line.

Retail Specification Achieved Through One CCP
Combination system eases acquisition, installation and support of a robust CCP designed to improve quality of production output simplifying the process.

Ideal for these products

Downloads for the Metal Detector Checkweigher Combination System

Metal Detection Combination Datasheet

Additional Features

  • Lead free construction
  • Operation of Metal Detection & Checkweigher from a single screen
  • Manufactured with LOMA's "Designed to Survive" philosophy
  • Available with multiple reject options


Material of Construction: 304 Brushed stainless steel
Line Height Option: 700 - 1000mm (+/- 50 adjustment)
Maximum Speeds: 5-75m/min
Supply Voltages: 110 or 230 V, single phase 50/60Hz, neutral & amp;Earth
Air Supply: 5 to 8 bar (10mm Outside Dia) 72-116 Psi
Temperature Range:
 -10oC to 35oC (14oF to 95oF)
Humidity: 0-95% Relative Humidity (Non-Condensing)
IP Rating: IP65
True Variable Frequency: 31KHz to 882KHz
Power Consumption: 20VA
Belt Type: PU Anti Static
PVS Enabled: Yes
USB Capability: Yes
Reporting: Batch, Shift
Data Retrieval: Via USB, Ethernet, Tracs
