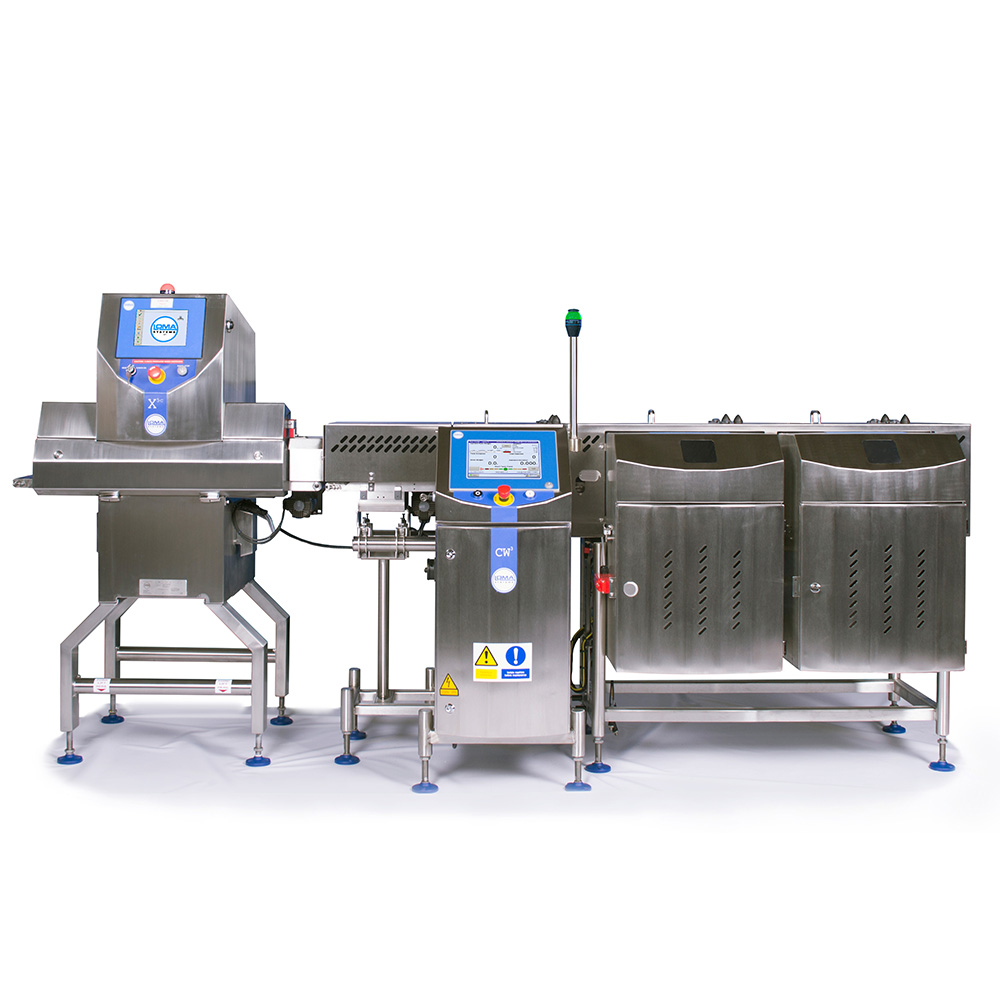

X5C & CW3 Check & Detect Combination System
The X5c & CW3 Check & Detect Combination System is designed for detecting contaminants and reducing giveaway in food products. This system is perfect for inspecting retail-packed convenience food, ready meals in foil trays and small end-of-line packaged goods up to 280mm wide by 110mm high.
Consisting of both LOMA’s X5c X-Ray Inspection and CW3 Checkweighing capabilities the system uses linked colour touchscreens complete with icon-driven menu’s for easy operation with integrated machine communication for safe product transfer.
Check & Detect System From a Single Supplier
LOMA’s Combination systems provide a single central point of contact for spares, service and general enquiries, saving you valuable time whilst providing no compromise on build quality and standards.
Integrated System Saving Valuable Line Space
Using a combination system can save around 25% of valuable foot space within the production line.
Retail Specification Achieved Through One CCP
Combination system eases acquisition, installation and support of a robust CCP designed to improve quality of production output simplifying the process.
Ideal for these products
Downloads for the X5C & CW3 Check & Detect Combination System
X5c Compact X-ray Inspection Combination Datasheet
Additional Features
- Lead free construction
- Can check product integrity including counting and missing items
- Manufactured with LOMA's "Designed to Survive" philosophy
- Available with multiple reject options
Specifications
Material of Construction: 304 Brushed stainless steel
Line Height Option: 700 - 1000mm (±50 adjustment)
Line Length: 3113 mm
Product Height: 110 mm (Recommended maximum)
Product Length: 280 mm (Recommended maximum)
Product Width: 280 mm (Recommended maximum)
X-Ray Output: 80 W (40kV 2 mA)
Maximum Speeds: 10-50 m/min
Power Requirements: 2 x 110 or 230 V, single phase 50/60Hz, neutral & amp;Earth
Air Supply: 5 to 8 bar (10 mm Outside dia.) 72-116 psi
Cooling: Vortex
Operating Environment: 10 to 35 °C with Vortex Cooler (2 to 10 °C with cabinet warm up enabled)
X-Ray Safety: Leakage less than 1 µSv/h
IP Rating: IP66
Detection Algorithms: 2 x contaminant, 3 x object checking, 2 x image optimisation
Belt Type: PU Anti Static
Weight Range (g) MID/R51 Approved: 50 - 1500*
Weight Range (g) MID/R51 Non-Approved: 10 - 1500*
Typical Accuracy (g): 0.18*
Reporting: Batch, Shift
Data Retrieval: Via USB, Ethernet, Tracs
*Higher weight capacity available dependent on pack weight
