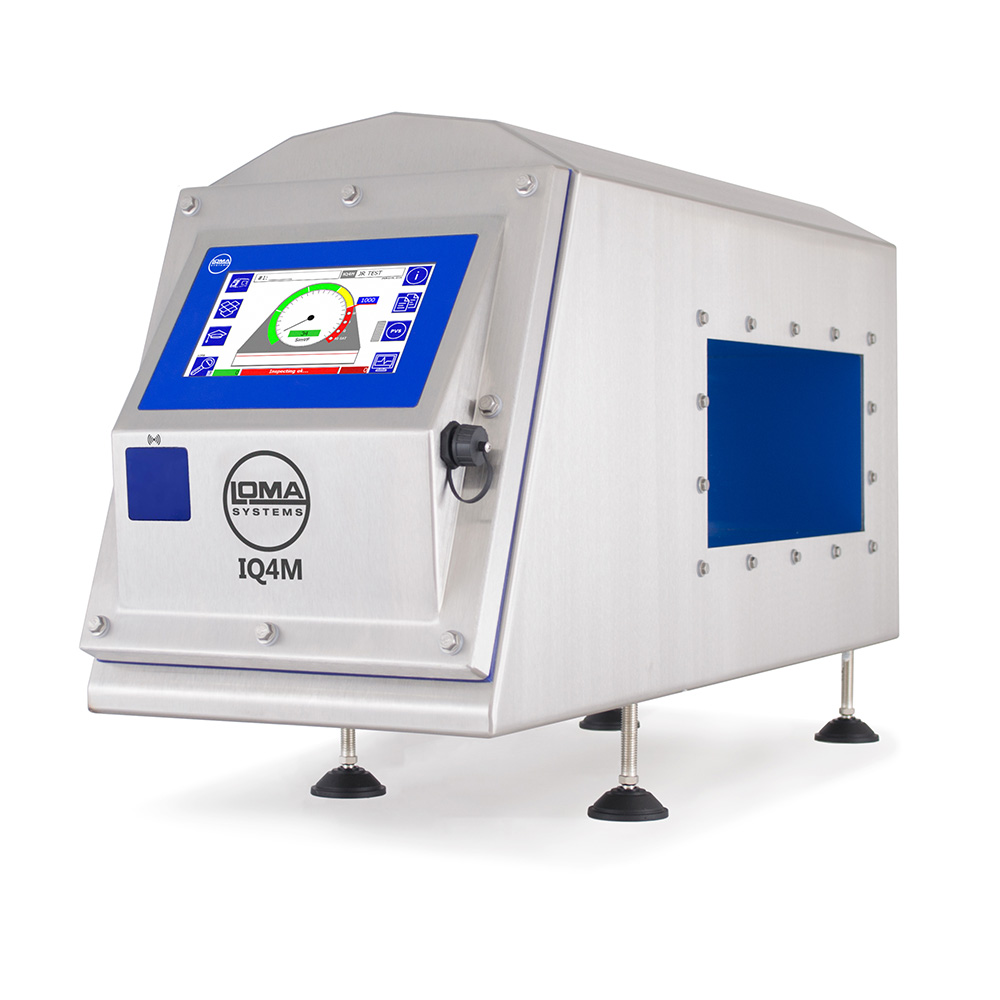

IQ4M Metal Detector

The IQ4M Metal Detector is the most precise metal detector in the IQ4 range as it features both Multi-spectrum detection and Variable Frequency technologies. Equipped with a 7” colour touchscreen, the IQ4M features an intuitive user interface that simplifies the process of setting, operating and maintaining the IQ4 range, thereby minimizing user errors. IQ4M metal detectors are specifically engineered for integration into production lines or conveyor systems. These conveyor systems adhere to stringent international standards, including IFS, BRC, and FSMA, and can be configured to meet the highest levels of compliance with strict Retail Codes of Practice.

Why the IQ4M is the Smart Choice

Multi-Spectrum and Variable Frequency Technology
Multi-spectrum (multi-frequency scanning) technology is designed to detect smaller contaminants across a wider range of metal types. The IQ4M’s variable frequency technology optimizes detection by selecting the most suitable frequency for a specific product. The combined features result in enhanced detection capabilities and a reduction in false positives.

RFID
RFID technology enhances product security and data integrity while also expediting the login process.

OPC-UA
OPC-UA is an industry-standard open communications protocol representing the latest generation of OPC technology. The IQ4M is equipped with Industry 4.0 connectivity, enabling data to be exchanged in a standardized format with other systems within the factory.

Ideal for these products

Downloads for the IQ4M Metal Detector

IQ4M Metal Detector Head Datasheet

IQ4M Metal Detector Head Brochure

NEW: IQ4M Metal Detector

Let us help! A Loma expert would be happy to assist you in determining whether the IQ4M is the appropriate solution for your specific application.
Get A Quote Today!

Additional Features

  • Supplied with reject signal output
  • Manufactured with LOMA's "Designed to Survive®" philosophy

Specifications

Material of Construction: 304 Brushed stainless steel
True Variable Frequency: 34 to 1200 KHz
Supply Voltages: 85 to 265 V, single phase 50/60 Hz, neutral & Earth
Power Consumption: 20 VA
Air Supply: 5 to 8 Bar (10 mm outside diameter) 72-116 psi
Temperature Range: -10 to +40 °C (14 to 104 °F)
Humidity: 0 to 95% Relative Humidity (Non-condensing)
IP Rating: IP69
PVS Enabled: Yes
Ethernet Capability: Yes, OPC-UA, TRACS, LomaData
USB Capability: Yes
RFID Compatibility: 13.56 MHz - High Frequency
