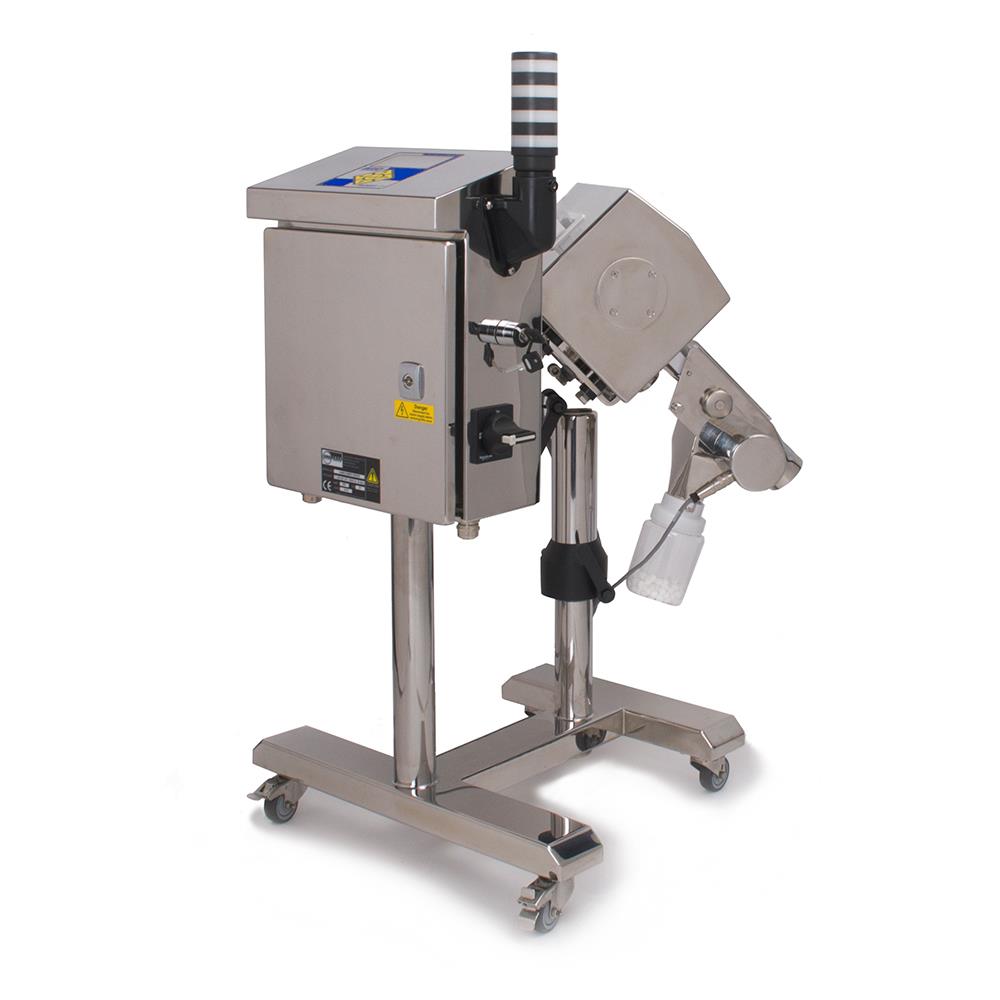

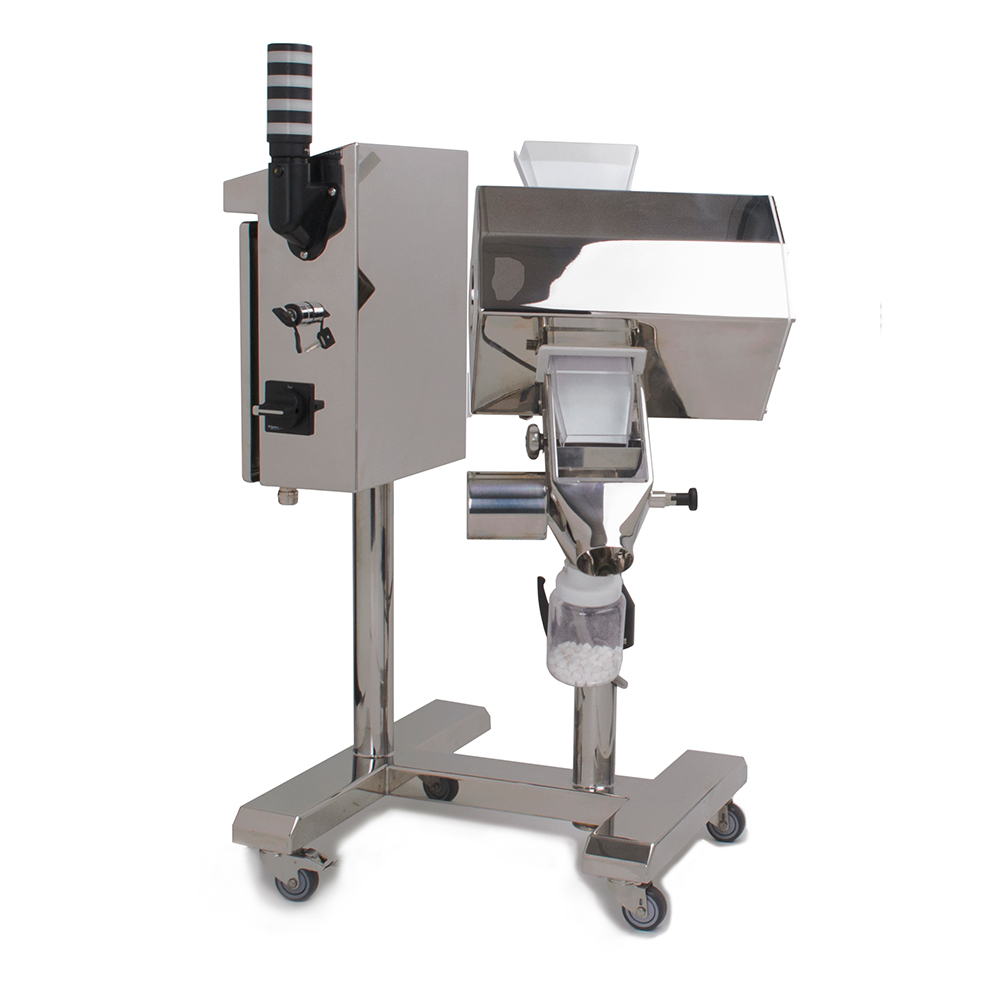

Insight Pharmaceutical Metal Detection System
The Insight PH Pharmaceutical Metal Detector is designed for inspecting tablets and capsules after the tablet and de-duster process with throughput of up to 30,000 units per minute. The system is built with a gas strut stand frame offering exceptional manoeuvrability making it convenient for use with all leading tablet presses and encapsulation machines.
Designed with throughput of up to 30,000 units per minute, the Insight PH comes complete with full IQ, OQ & PQ validation documents and certification.
DDS Vector Display Delivers Perfect Product Set-Ups
The Direct Digital Signal (DDS) vector display provides a graphic representation of the metal detection process, aids perfect product set-up and is an excellent diagnostic tool.
Easy to Clean and Maintain
The Insight PH is fully GMP compliant and is made with a mirror polished finish with no dust traps.
Auto Learn Provides Simple and Fast Set-up
The Insight PH will automatically set-up and store 200 different pre-sets, calibrating for product effect and loose material as the product passes through the system.
Ideal for these products
Downloads for the Insight Pharmaceutical Metal Detection System
Insight Pharmaceutical Datasheet
Additional Features
- Sealed for IP66 washdown applications
- Made with 316 polished stainless steel
- Manufactured with LOMA's "Designed to Survive" philosophy
- Multiple reject options including Wash in Place (WIP)
Specifications
Material of Construction: 304 mirror polished stainless steel with 316 mirror polished stainless steel rejectSingle Frequency: 1 MHz
Supply Voltages: 85 to 265 V, single phase 50/60Hz, neutral & amp;Earth
Power Consumption: 20 VA
Temperature Range: -10 to +40 oC (14 to 95 oF)
Humidity: 0 to 95% Relative Humidity (Non-condensing)
IP Rating: IP66
PVS Enabled: Yes (Sample Test)
Ethernet Capability: Yes
USB Capability: Yes
