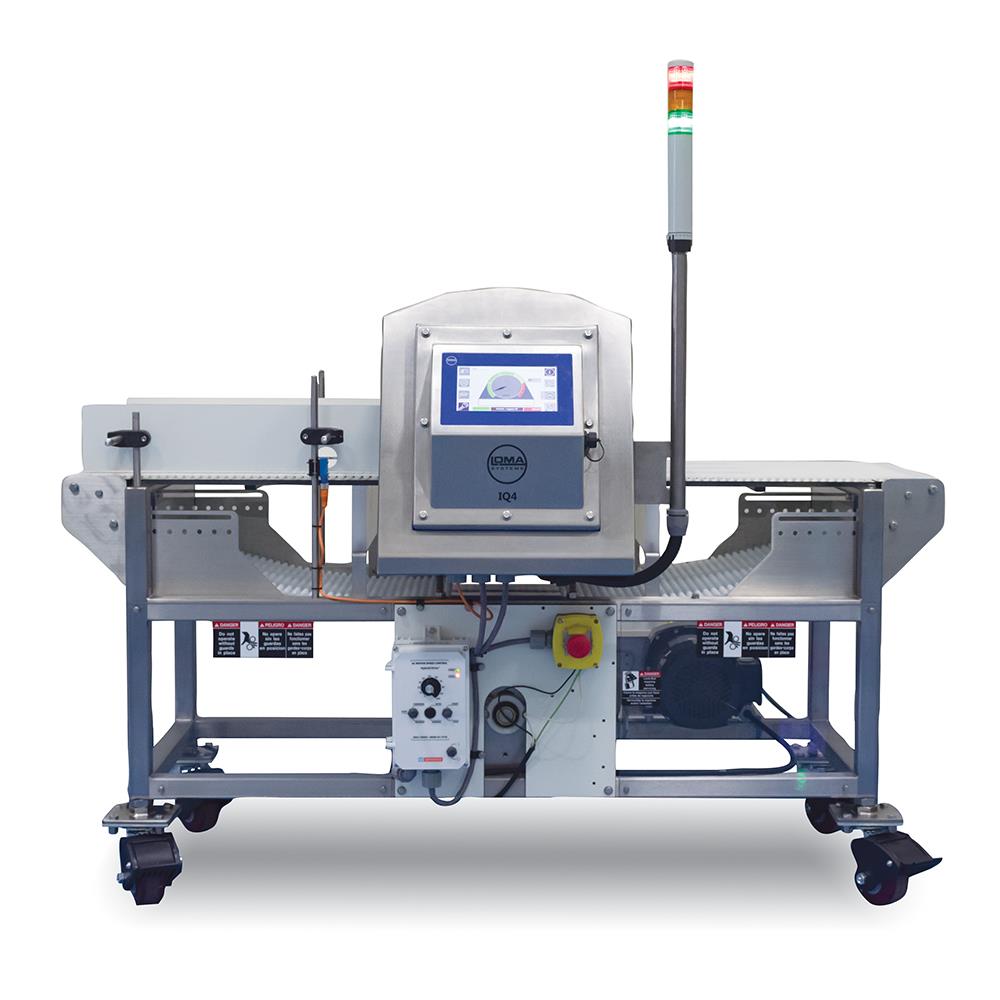

FLEX Conveyor

The FLEX Conveyor is a fully-functional, adjustable metal detector conveyor systems that comes standard in a variety of aperture heights, belt speeds, and belt lengths. Through LOMA’s QuickShip™ program we guarantee certified inspection systems when you need them. This system is designed to meet unique operational needs without the lead time of a custom-built system.

The FLEX Conveyor offers the latest 7” color touchscreen with the engaging new user interface designed to make light work of setting, running and maintaining the IQ4 range, minimalizing user errors. Conveyor systems comply with strict international standards such as IFS, BRC and FSMA; and can also be supplied with “Higher Level Compliance” to meet the strictest of Retail Codes of Practice.

The IQ4 range of Metal Detectors offer optimized mechanics to deliver performance improvements using variable-frequency detection (31 to 882 KHz).

7” Touchscreen with a new easy to use interface
Standard across all of the IQ4 range, the big 7” touchscreen offers 33% more space than previous generation metal detectors and improves usability.

Robust “Beyond” IP69K rating Search Head
An improved lip, screen, and new blue sealing arrangement, combined with ultra-harsh mechanics proven from the IQ3+ range, make this one of the toughest and factory friendly metal detectors on the market. Washdown upgrade available for conveyor system.

Flexible Conveyor System
Fully adjustable conveyor system comes standard in a variety of belt speeds and lengths making operational changes hassle-free, including flow direction change with the flip of a switch.

Ideal for these products

Downloads for the FLEX Conveyor

IQ4 Flex Conveyor

Additional Features

  • Caster (Lockable wheel and swivel)
  • Various reject configurations including; Stop on detect, Pusher, Air blast
  • Lead free construction
  • Modular length configurations of 60" to 72"
  • 12", 16" or 20" wide, open-face modular belting and in-feed product guides
  • PVS (Performance Validation System) with stack light and alarm

Specifications

Material of Construction: 304 Brushed stainless steel
System Length: 60" to 72"
Line Height Option: 30" to 40" variable
Standard Belt Width: 12", 16", 20"
Belt Type: Modular (open face)
Control Panel: Touchscreen Control
Speed: 40 - 120 ft/min
IP Rating: Head IP69K ; washdown upgrade available for conveyor
Power Requirements: 230v or 115 1ph / N+E 50 or 60Hz
Apertures Available (W x H mm): 350 x 150, 200, 250 | 450 x 150, 200, 250 | 550 x 150, 200, 250
