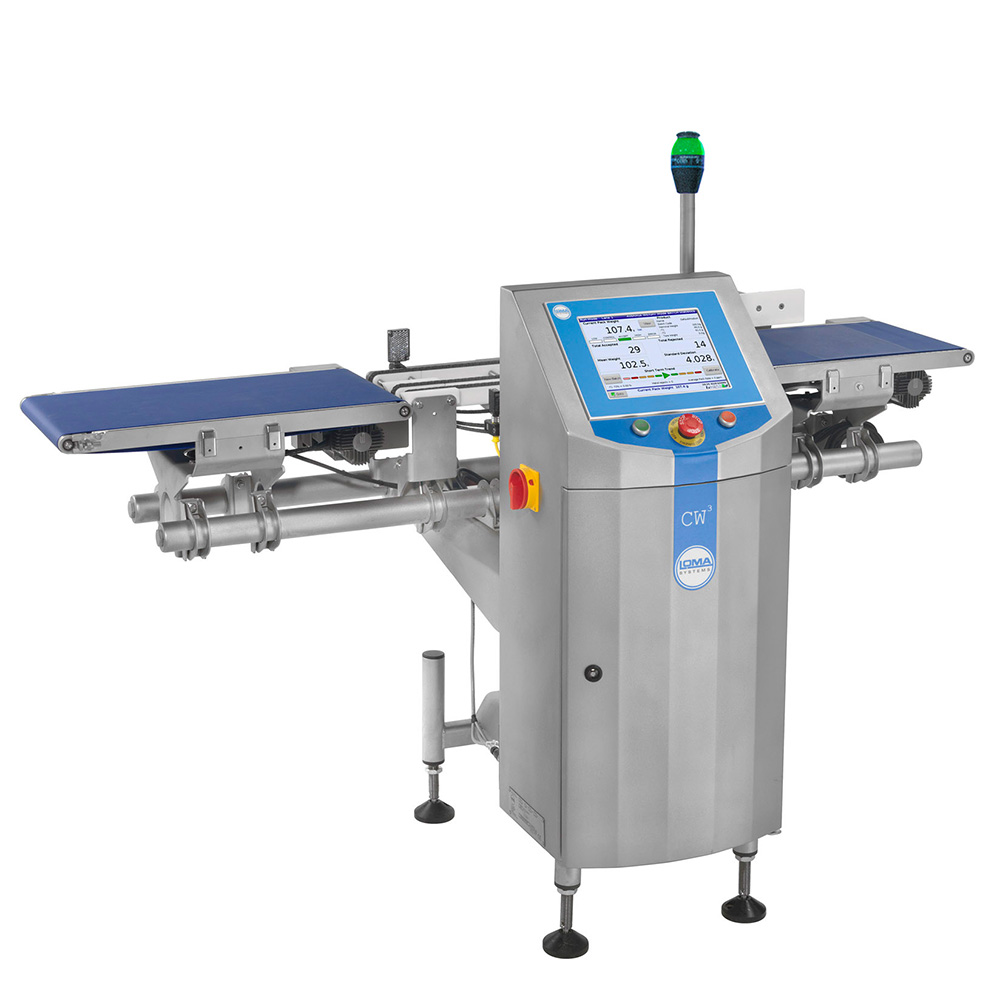

Draglink Checkweigher for Cans, Jars and Bottles
Designed to be integrated into the production process to ensure product weight meets legislation, the CW3 Draglink is designed for products packaged in cans, jars or bottles and up to 6 kg in weight.
The complete system is available with specification including BRC, IFS, & Retail compliance and can be approved to either OIML R51 and MID (EC TAC). All systems come complete with Automatic Mean weight correction to help meet weight legislation.
The Loma CW3 Checkweigher includes brushless motors & proven conveyor components designed for reliable 24/7 operation.
Fast, Simple, Accurate Setup
Type in your product details, initiate setup, and pass a pack several times and the CW3 is automatically set-up and ready to use for average or mean weights.
Save Money, Reduce Product Give Away
Using a highly reliable loadcell technology the CW3 gives you accurate readings whilst minimizing unnecessary product give away.
Switch Products in Seconds with a Library of Stored Products
Up to 500 product calibration details are stored in memory ready for fast product recall using multi-product menu’s.
Ideal for these products
- Lead free construction
- Approved systems to OIML R51 and MID (EC TACT)
- Manufactured with LOMA's "Designed to Survive" philosophy
- Automatic Mean Weight Correction to help meet weight legislation
SpecificationsMaterial of Construction: 304 Brushed stainless steel
Line Height Option: 750 - 950mm (+/- 50 adjustment)
Maximum Speeds: 115m/min
Supply Voltages: 110 or 230 V, single phase 50/60Hz, neutral & amp;Earth
Air Supply: 5 to 8 bar (10mm Outside Dia) 72-116 Psi
Operating Environment: 0-40oC
IP Rating: IP65
Belt Width: 200/300mm (Model Dependent)
Belt Type: Nylatron GS 1/4" Chain x 3
Reporting: Batch, Shift
Data Retrieval: Via USB, Ethernet, Tracs
