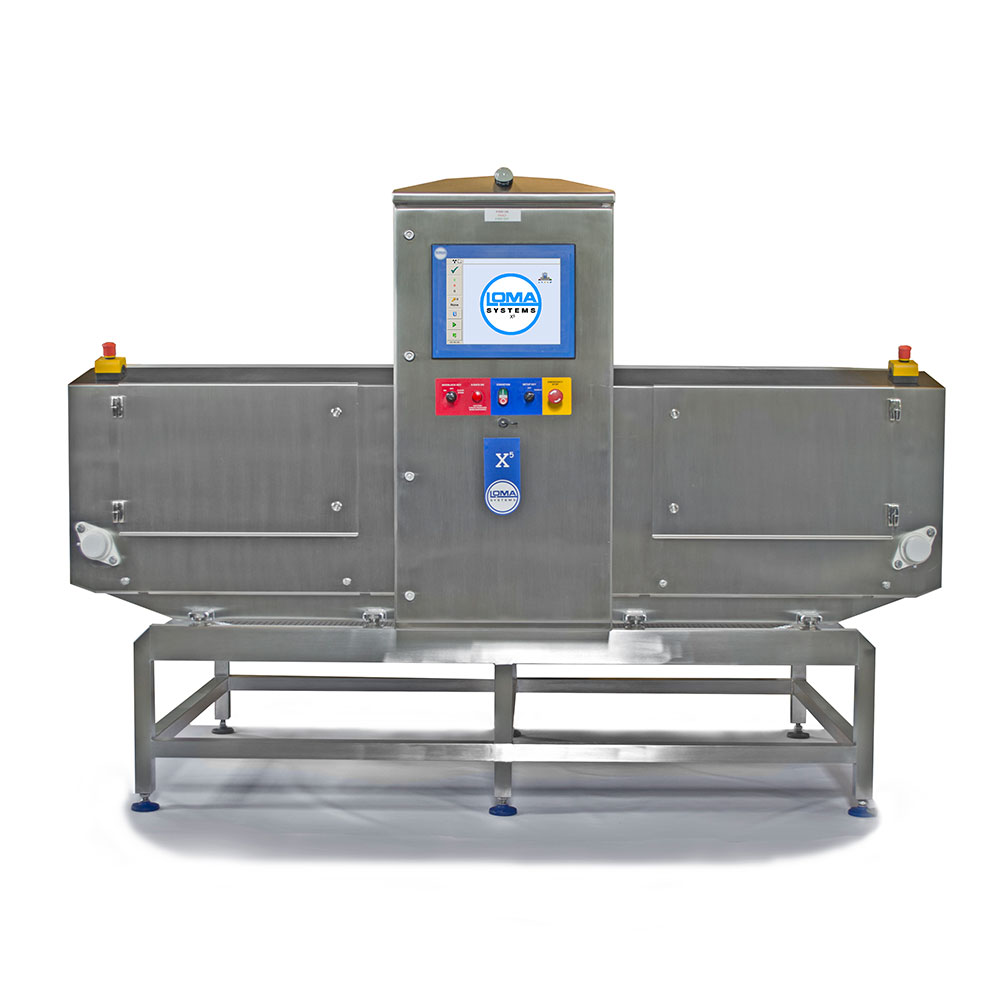

X5 XL800 X-Ray Inspection

Designed to be integrated into the production process at either the beginning to protect equipment or at the end to protect consumers, the X5 XL 800 is perfect for products such as meat in Euro crates or cheese in bulk boxes.

Offering good detection levels on a wide range of contaminants including all metal, bone, glass, dense plastics.

The reliable heavy duty conveyor components, built for 24/7 operation with pass key protective Set-up comes integrated with a Windows 10 PC with Modem, Ethernet and front access USB port.

Suitable for Large Products, Euro Crates and Bulk Bags from 25 to 100kg
Designed to handle sealed large bulk products prior to processing or distribution. Ideal for products such as crates of meat or large cheese wheels.

Modular Belt for Easy Washdown and Cleaning

Modular belt makes cleaning easy for machines in a high-care environment.

Easy to Use Intuitive Full Colour Touchscreen
The X5 XL800 includes an Icon driven full colour touchscreen control interface including multi-level password access.

Ideal for these products

Downloads for the X5 XL800 X-Ray Inspection

X5 XL800 Datasheet

X-ray inspection FAQ's

Understand more about X-ray inspection, how it compares to metal detection and what it can do for your production.

LEARN MORE

Additional Features

  • Features AAT technology
  • Check product integrity including counting and missing items
  • Manufactured with LOMA's "Designed to Survive" philosophy
  • Lead free construction

Specifications

Material of Construction: 304 Brushed stainless steel
System Length: 2500mm
Line Height Option: 900mm (+/- 50 adjustment)
X-Ray Output: 240W (80kV 3 mA)
IP Rating: IP66
Belt Width: 800mm
Belt Type: Modular
Weight on Belt: Up to 100kg
Speed Range: 10 - 50 m/min
Supply Voltages: 85 to 265 V, single phase 50/60Hz, neutral & amp;Earth
Operating Environment: 0 - 15oC | 32 - 59oF
Cooling: 0 - 15oC Vortex, 15 - 40oC Air Conditioner option
X-Ray Safety: Leakage less than 1 μSv/h
Detection Algorithms: 15 multilayer Algorithms combined in any combinations
Reporting: Event, Batch, Shift
Data Retrieval: Via USB, Ethernet, Tracs
