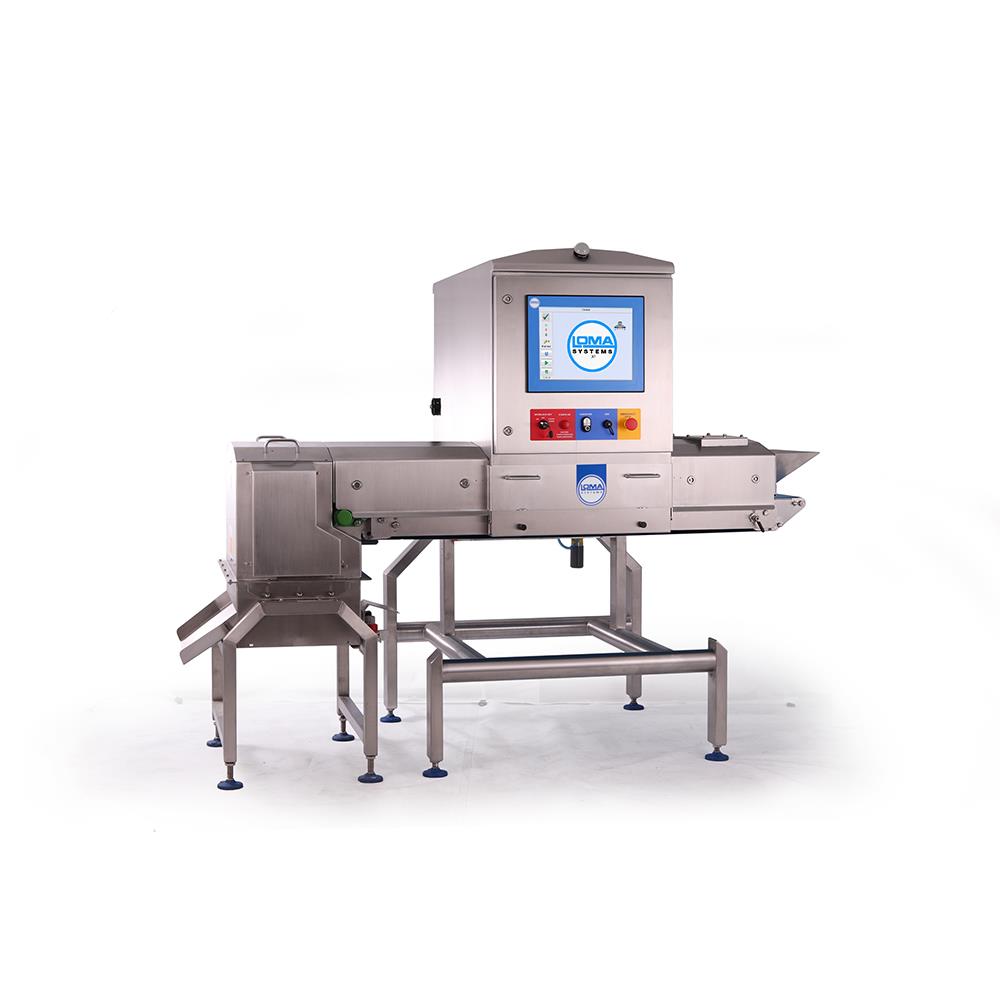

Bulkflow X-Ray Inspection System

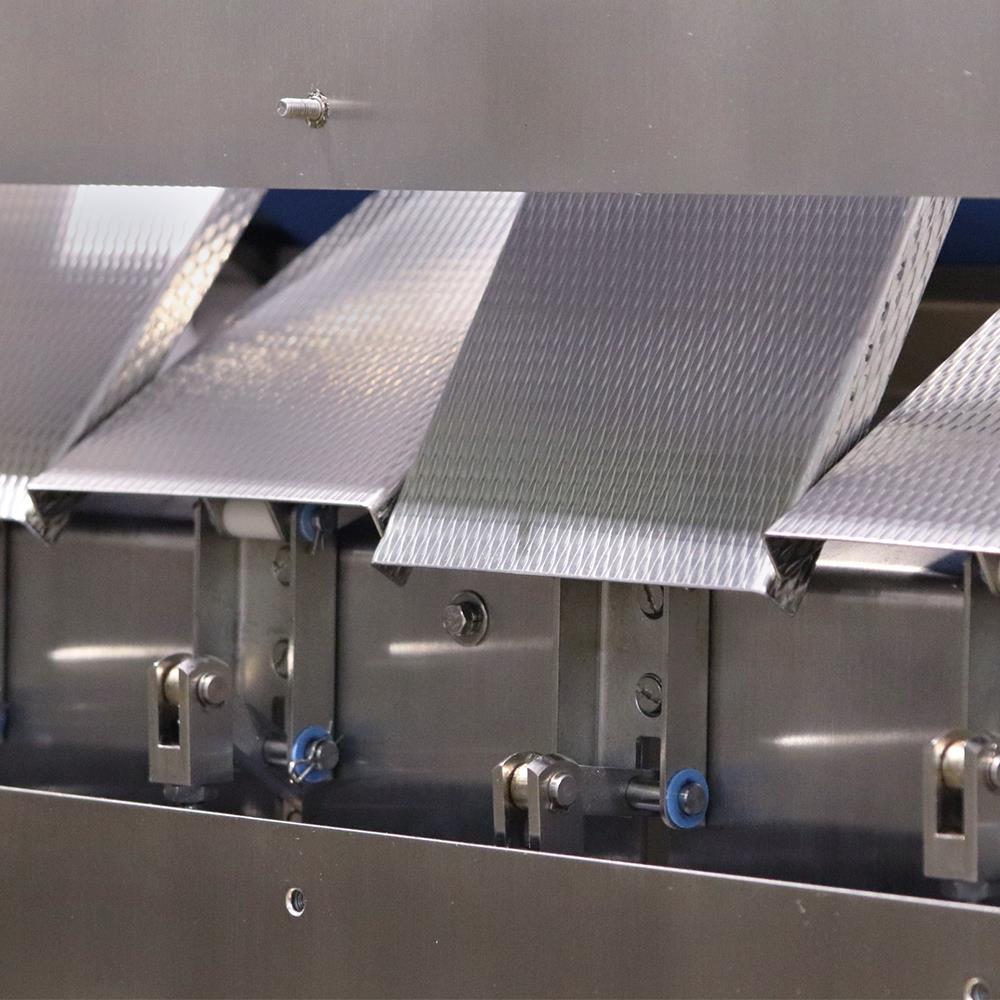

Designed to be integrated into line with optional reject stations, the Bulkflow X-ray System is perfect for loose and free flowing products. Offering a good detection levels on a wide range of contaminants including all metal, bone, glass and dense plastics.

Easy to Use Intuitive Full Color Touchscreen
The Bulkflow X-ray includes an Icon driven full color touchscreen control interface including multi-level password access and data logged events for tractability.

Data Logged Events and Images for Full Traceability

Data stamped reject images designed to comply with 21 CFR Part 11 requirements are internally stored and can be removed via USB or Ethernet.

Ideal for these products

Downloads for the Bulkflow X-Ray Inspection System

X5 Bulkflow Datasheet

Contact an expert

We’ll put you in contact  with one of our production and detection experts to discuss your needs.
Ask an expert

Training Courses

Get more out of your inspection equipment with the latest Training courses. With their vast amount of experience our engineers help to add a real-world element to the courses tackling issues that you may experience on a weekly basis, even if just a setup issue.

Learn More

User Guides

Find full user guides for this system if you already operate using this product, based on your serial number.
Search user guides

Additional Features


  • Check product integrity including counting and missing items


Material of Construction: 304 Brushed stainless steel
System Length: 2087 mm
Line Height Option: 750 | 800 | 850 | 900 | 950 | 1000 mm (+50/ - 25 adjustment)
Product Height: 60 mm (recommended max)
Product Width: Belt width dependent
X-Ray Output: 200 W (40kV 5 mA)
IP Rating: IP66
Belt Width: 300,500 mm
Belt Type: PU Anti-static
Speed Range: Up to 80 m/min
Supply Voltages: 85 to 265 V, single phase 50/60Hz, neutral & Earth
Operating Environment: 10 to 35°C , 2 to 10°C with automatic cabinet warm-up enabled
Cooling: Vortex
X-Ray Safety: Leakage less than 1 μSv/h
Reporting: Event, Batch, Shift, PVS
Data Retrieval: Via USB, Ethernet
