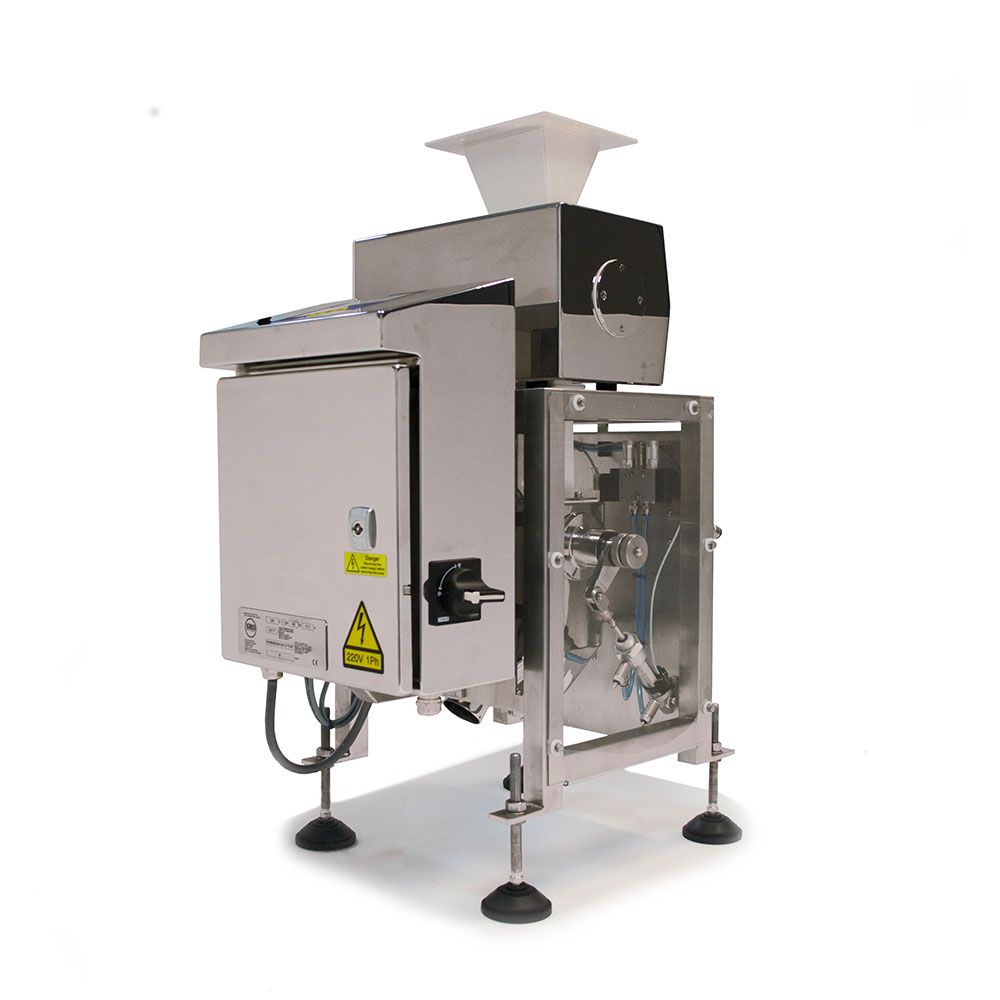

Insight Vertical Fall Pharmaceutical Metal Detection System

The Insight Pharmaceutical Vertical Fall Metal Detection system is designed for inspecting powders and granules with a throughput of up to 3000kg per hour.

The Insight PH Vertical Fall comes complete with full IQ, OQ & PQ validation documents and certification.

DDS Vector Display Delivers Perfect Product Set-Ups
The Direct Digital Signal (DDS) vector display provides a graphic representation of the metal detection process, aids perfect product set-up and is an excellent diagnostic tool.

Easy to clean and maintain

The Insight PH Vertical Fall is fully GMP compliant and is made with a mirror polished finish with no dust traps.

Auto Learn Provides Simple and Fast Set-up
The Insight PH Vertical Fall will automatically set-up and store 200 different pre-sets, calibrating for product effect and loose material as the product passes through the system.

Ideal for these products

Downloads for the Insight Vertical Fall Pharmaceutical Metal Detection System

Insight Pharmaceutical Vertical Fall

Additional Features

  • Sealed for IP66 washdown applications
  • Made with 316 polished stainless steel
  • Manufactured with LOMA's "Designed to Survive" philosophy
  • Multiple reject options including Wash in Place (WIP)

Specifications

Material of Construction: 304 mirror polished stainless steel with 316 mirror polished stainless steel reject
Single Frequency: 1 MHz
Supply Voltages: 85 to 265 V, single phase 50/60Hz, neutral & amp;Earth
Power Consumption: 20 VA
Temperature Range: -10 to +40 oC (14 to 95 oF)
Humidity: 0 to 95% Relative Humidity (Non-condensing)
IP Rating: IP66
PVS Enabled: Yes (Sample Test)
Ethernet Capability: Yes
USB Capability: Yes
