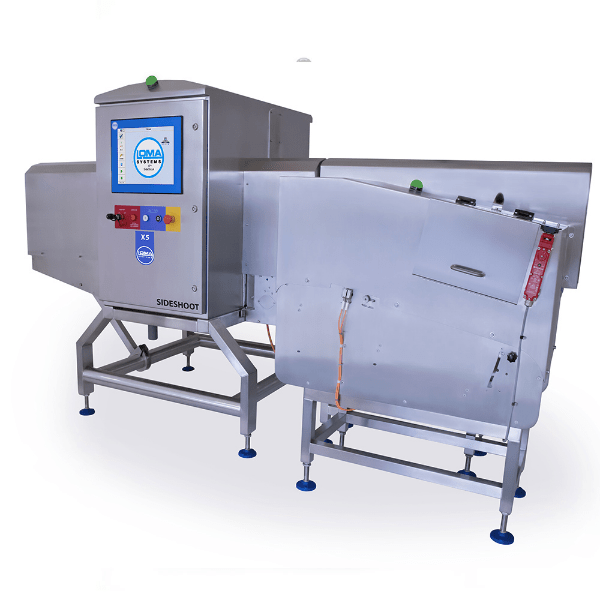

X5 SideShoot for Tall Product Inspection

The X5 SideShoot is designed to inspect from the side and is suitable for a variety of taller food products. This includes items such as yoghurts, confectionary, snacks, cookies and products packaged in lightweight cans or jars. The side view x-ray system system features a 150 mm wide belt and is capable of offering excellent detection of a wide range of contaminants including all metals, glass, stone and dense plastics, dependent on the product.

The X5 SideShoot includes all of the standard features from the X5 range, including a higher power X-ray generator, and is designed to attract a low total cost of ownership resulting from simplified annual maintenance regimes.

The reliable heavy duty conveyor components, built for 24/7 operation with password protective set-up comes integrated with a Windows 10 PC with Ethernet and front access USB port.

Side View X-ray System for Food Inspection
System images taller products from the side to provides contaminant inspection as well as product integrity checking such as volume.

Fully enclosed CCP solution with integrated reject
All in one system with optional retail compliance options, the X5 SideShoot offers complete control and removes risks. Reject options include pushers or a diverter.

Get inspecting fast with LOMA’s product learn wizard
A set-up wizard automatically optimises the X5 SideShoot for each product type and allows you to learn or switch to new products within minutes.

Vhodné pro tato odvětví:

Soubory ke stažení pro X5 SideShoot for Tall Product Inspection

X5 SideShoot Datasheet

X-ray inspection FAQ's

Understand more about X-ray inspection, how it compares to metal detection and what it can do for your production.


Přídavné funkce


  • Check product integrity including volume and fill levels
  • Manufactured with LOMA's "Designed to Survive" philosophy
  • Lead-free construction


Material of Construction: 304 Brushed stainless steel
System Length: 2300mm (With Reject)
Line Height Option: 750 - 1100mm (100 mm increments with ±50 adjustment)
IP Rating: IP66
Belt Width (mm): 150
Speed Range: 10 - 50 m/min
Supply Voltages: 85 to 265 V, single phase 50/60Hz, neutral & amp;Earth
Cooling: Vortex (requires compressed air connection) | optional air conditioner
Operating Environment (standard): 10 - 35°C (50 - 95 °F)
Operating Environment (warm-up enabled): 2 - 10 °C (32 - 50 °F)
X-Ray Safety: Leakage less than 1 μSv/h
Reporting: Event, Batch, Shift, PVS
Data Retrieval: Via USB, Ethernet or TRACS
