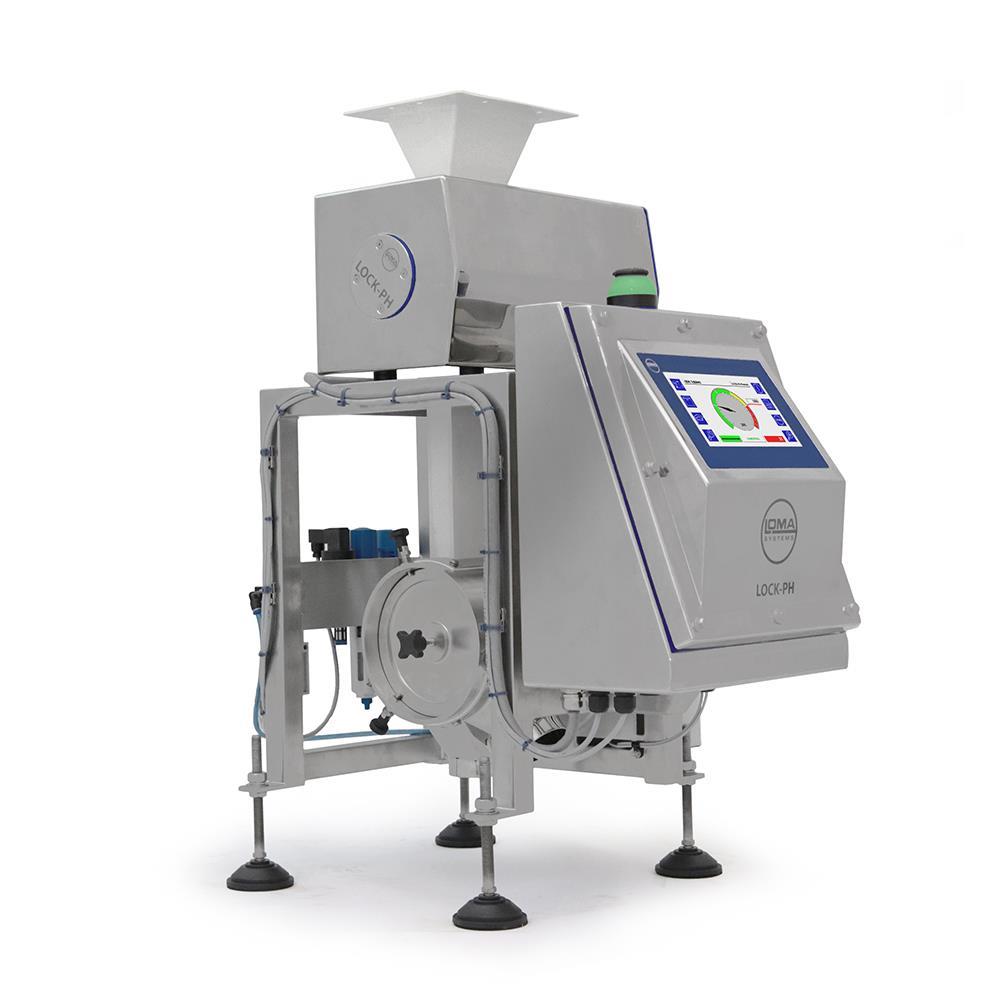

IQ4 LOCK-PH VF Pharmaceutical Metal Detection System

The IQ4 LOCK-PH Pharmaceutical Vertical Fall Metal Detection system is designed for inspecting powders and granules with a throughput of up to 3000kg per hour with superior and reliable detection performance.

The system comes complete with full IQ, OQ & PQ validation documents and material certificates of all contact parts.

7” Touchscreen with a new easy to use interface
The new 7” touchscreen ensures simple and efficient user access and simple operation.

Easy to clean and maintain

Fully GMP compliant and is made with a mirror polished finish with no dust traps.

Auto Learn Provides Simple and Fast Set-up
The IQ4 LOCK-PH VF Vertical Fall will automatically set-up and store 200 different pre-sets, calibrating for product effect and loose material as the product passes through the system.

Vhodné pro tato odvětví:

Soubory ke stažení pro IQ4 LOCK-PH VF Pharmaceutical Metal Detection System

IQ4 LOCK-PH VF Pharmaceutical - Datasheet

Přídavné funkce

  • Sealed for IP66 washdown applications
  • Made with 316 polished stainless steel
  • Manufactured with LOMA's "Designed to Survive" philosophy
  • Multiple reject options including Wash in Place (WIP)


Material of Construction: 304 mirror polished stainless steel with 316 mirror polished stainless steel reject
Single Frequency: 1 MHz
Supply Voltages: 85 to 265 V, single phase 50/60Hz, neutral & amp;Earth
Power Consumption: 20 VA
Temperature Range: -10 to +40 oC (14 to 95 oF)
Humidity: 0 to 95% Relative Humidity (Non-condensing)
IP Rating: IP66
PVS Enabled: Yes (Sample Test)
Ethernet Capability: Yes
USB Capability: Yes
