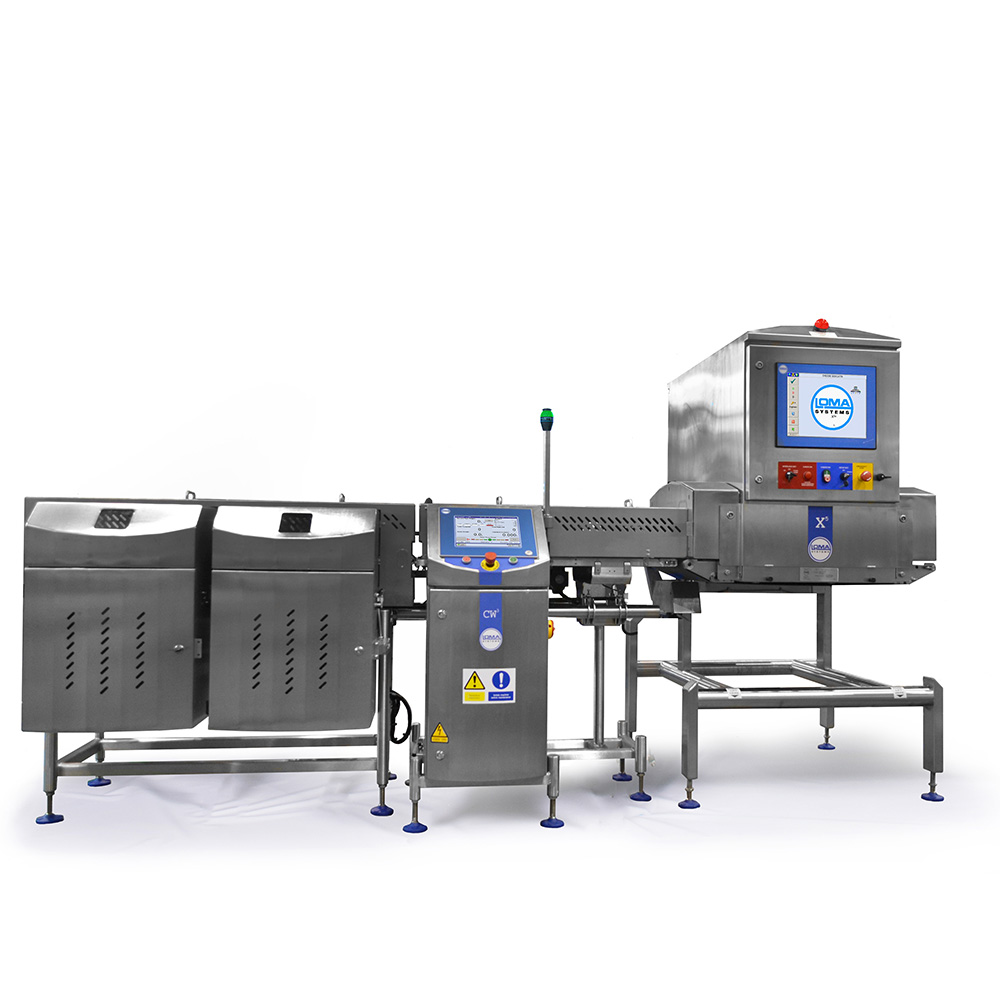

X5 Spacesaver/CW3 Check & Detect Combination System
The X5 Spacesaver & CW3 Check & Detect Combination System is designed for detecting contaminants and reducing giveaway in food products. This system is perfect for inspecting retail-packed convenience food, ready meals in foil trays and small end-of-line packaged goods.
Consisting of both Loma’s X5 Spacesaver X-Ray Inspection and CW3 Checkweighing capabilities the system uses linked colour touchscreens complete with icon-driven menu’s for easy operation with integrated machine communication for safe product transfer.
Check & Detect System From a Single Supplier
LOMA’s Combination systems provide a single central point of contact for spares, service and general enquiries, saving you valuable time whilst providing no compromise on build quality and standards.
Integrated System Saving Valuable Line Space
Using a combination system can save around 25% of valuable foot space within the production line.
Retail Specification Achieved Through One CCP
Combination system eases acquisition, installation and support of a robust CCP designed to improve quality of production output simplifying the process.
Ideal for these products
- Lead free construction
- Can check product integrity including counting and missing items
- Manufactured with LOMA's "Designed to Survive" philosophy
- Available with multiple reject options
Material of Construction: 304 Brushed stainless steel
Line Height Option: 700 - 1000 mm (± 50 adjustment)
Line Length: 3365 mm
X-Ray Output: 150 W (60kV 2.5 mA)
Maximum Speeds: 20-75 m/min
Power Requirements: 2 x 110 or 230 V, single phase 50/60Hz, neutral & amp;Earth
Air Supply: 5 to 8 bar (10 mm Outside dia.) 72-116 psi
Cooling: Vortex or AC Air Conditioning
Operating Environment (Vortex Standard): 2 to 10 °C with cabinet warm up (10 to 25 °C with Vortex)
Operating Environment (AC Air Conditioning Option): 25 to 35 °C AC Air Conditioning (Cabinet reduced to NEMA 4X With AC Option)
X-Ray Safety: Leakage less than 1 µSv/h
IP Rating: IP66
Detection Algorithms: 15 multilayer algorithms combined in any combination
Belt Type: PU Anti Static
Weight Range (g) MID/R51 Approved: 50 - 6000*
Weight Range (g) MID/R51 Non-Approved: 20 - 6000*
Typical Accuracy (g): 0.30*
Reporting: Batch, Shift
Data Retrieval: Via USB, Ethernet, Tracs
*Lower weight capacity available dependent on pack weight
